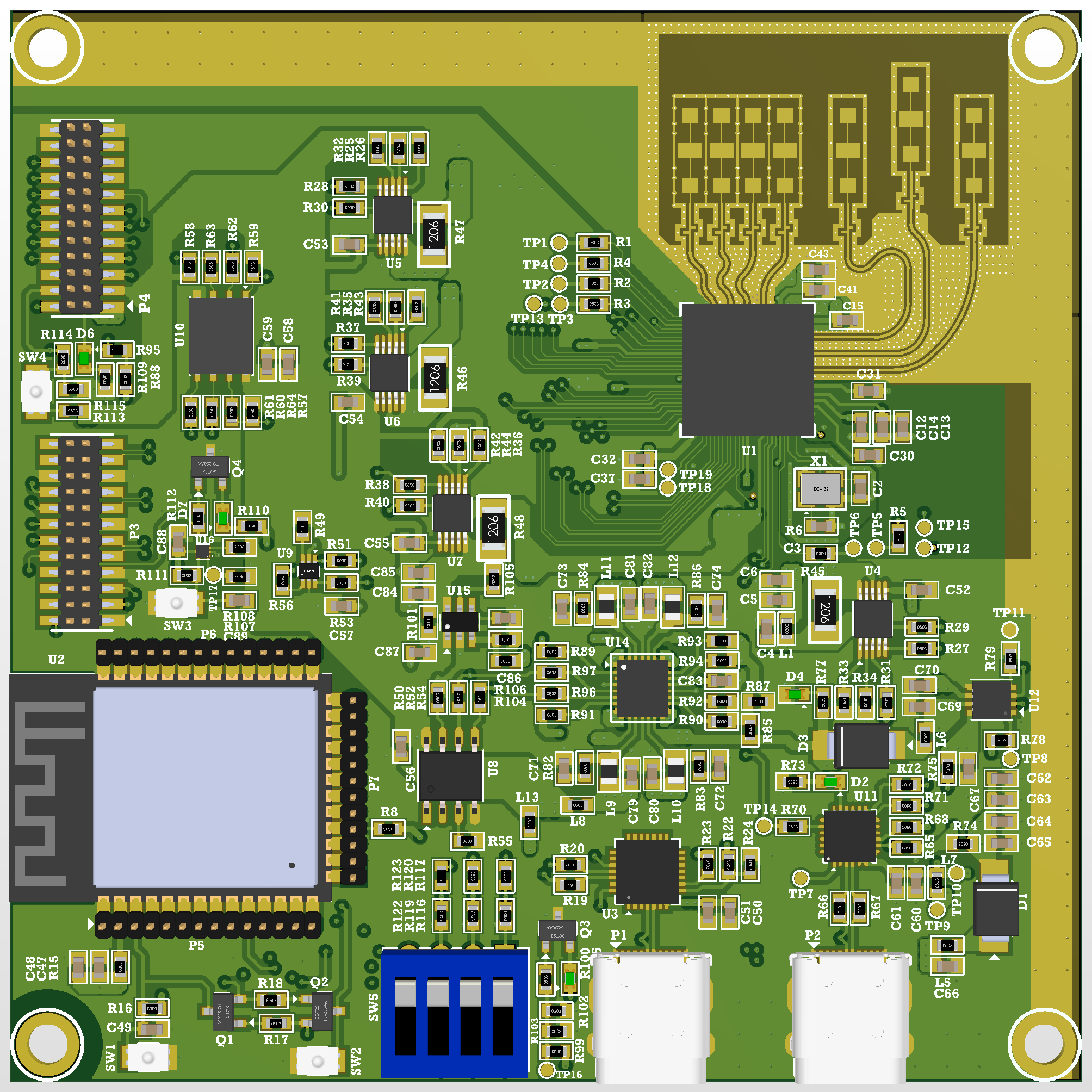

3D Rendered Board

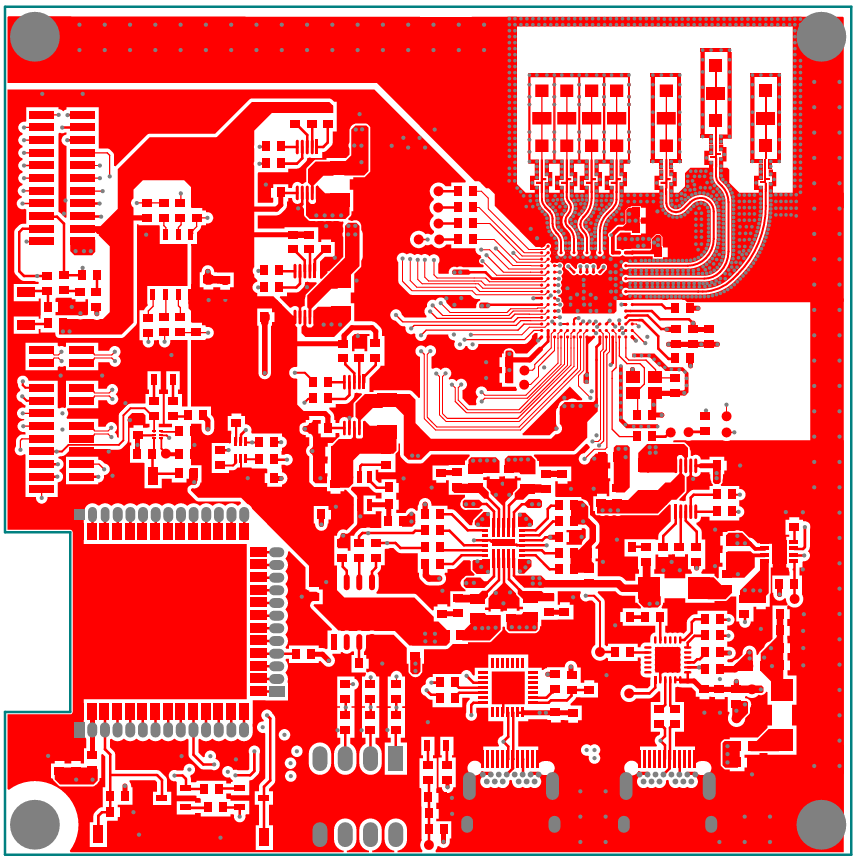

2D Design Layout
Slide to compare the 2D PCB design layout with the 3D rendered board.
Introduction
The IWR6843AGGABL is a high-performance 60 GHz mmWave radar sensor designed for intelligent sensing and industrial automation applications. By integrating radar signal processing, a high-performance processor, and wireless sensing capabilities into a compact device, it enables accurate object detection, distance measurement, velocity estimation, and people tracking without requiring cameras or physical contact. Its ability to operate reliably in challenging environments such as dust, smoke, fog, and varying lighting conditions makes it an excellent choice for modern factories, warehouses, robotics, and smart manufacturing systems.
Key Features
- 60 GHz mmWave radar sensor for precise object detection
- Simultaneous measurement of range, velocity, and angle
- High-resolution people and object tracking
- Contactless sensing and motion detection
- Operates reliably in darkness, dust, smoke, and fog
- Integrated DSP and microcontroller for real-time signal processing
- Low power consumption for embedded applications
- High-speed interfaces including SPI, UART, I²C, and GPIO
- Supports real-time embedded software development
- Compact package suitable for industrial and robotic systems
Why IWR6843AGGABL is Suitable for Industrial Automation
Industrial automation systems require accurate, reliable, and real-time sensing to improve safety, productivity, and operational efficiency. The IWR6843AGGABL delivers precise detection of moving and stationary objects while simultaneously measuring their position and speed. Unlike optical sensors, cameras, or ultrasonic sensors, mmWave radar performs consistently under poor lighting, dust, smoke, and harsh industrial environments. This enables reliable obstacle detection, autonomous robot navigation, machine monitoring, collision avoidance, occupancy detection, and predictive maintenance, making it an ideal sensing solution for Industry 4.0 and smart factory applications.
Applications
The IWR6843AGGABL is widely used in industrial automation for autonomous mobile robots (AMRs), Automated Guided Vehicles (AGVs), robotic obstacle detection, collision avoidance systems, warehouse automation, conveyor monitoring, machine safety, occupancy and people detection, worker safety monitoring, automated material handling, industrial asset tracking, machine condition monitoring, smart logistics, access control, and intelligent factory monitoring systems. Its ability to provide accurate real-time sensing enables reliable automation, improved operational safety, and enhanced productivity.
At GVK POWER, we develop embedded hardware solutions based on the IWR6843AGGABL, including custom motherboard design, radar sensor integration, high-speed multilayer PCB design, power management, embedded firmware development, prototype validation, and production-ready hardware for industrial automation, robotics, and smart sensing applications.
At GVK POWER, we develop embedded hardware solutions based on the IWR6843AGGABL, including custom motherboard design, radar sensor integration, high-speed multilayer PCB design, power management, embedded firmware development, prototype validation, and production-ready hardware for industrial automation, robotics, and smart sensing applications.
Why Choose GVK POWER?
At GVK POWER, we specialize in the design and development of embedded hardware solutions for advanced sensing and industrial automation. Our engineering capabilities include radar-based system architecture, custom motherboard development, schematic capture, multilayer PCB layout, high-speed interface design, RF-aware PCB development, power supply optimization, embedded firmware development, prototype manufacturing, testing, and production support. We deliver reliable, scalable, and production-ready hardware platforms that enable intelligent automation, robotic navigation, industrial safety, and real-time monitoring for next-generation smart manufacturing systems.
