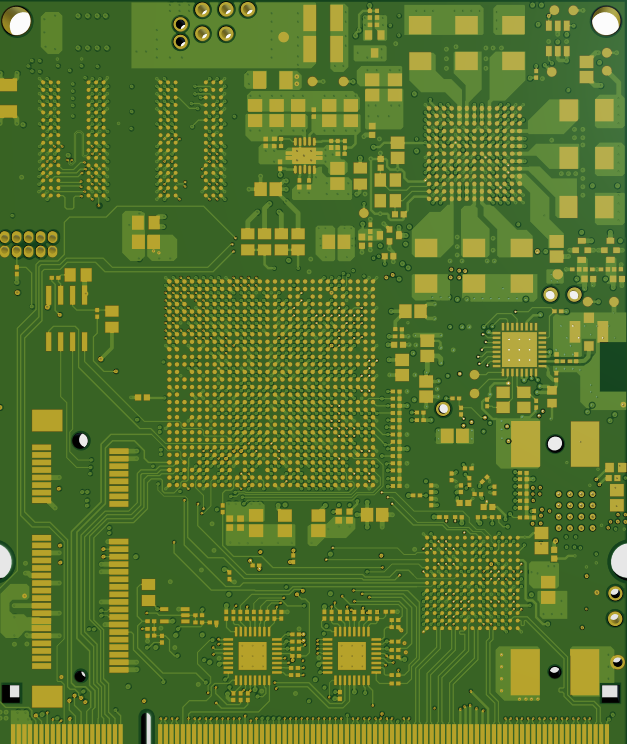

3D Rendered Board

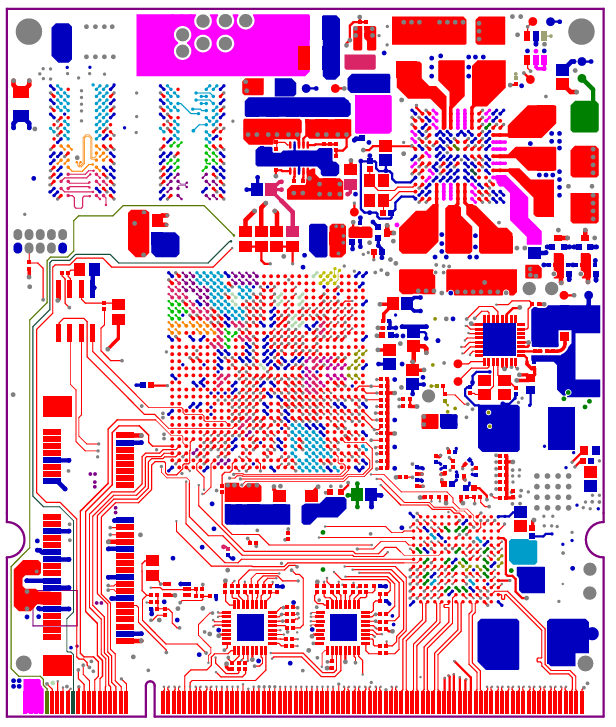

2D Design Layout
Slide to compare the 2D PCB design layout with the 3D rendered board.
Introduction
The AM5718 is a high-performance multicore embedded processor designed for advanced Industrial Automation and Industry 4.0 applications. Featuring dual ARM Cortex-A15 processors, dual C66x DSP cores, and dual Cortex-M4 real-time processors, it delivers exceptional computing performance for intelligent machine control, real-time data acquisition, edge computing, and industrial communication. Its heterogeneous multicore architecture enables simultaneous execution of control, analytics, and networking tasks while maintaining deterministic real-time performance. With support for high-speed interfaces, industrial communication protocols, graphics acceleration, and hardware security, the AM5718 provides a scalable platform for smart factories and connected manufacturing systems. As industries adopt Industry 4.0 technologies such as Industrial IoT, predictive maintenance, and intelligent automation, the AM5718 enables reliable, secure, and production-ready embedded solutions that improve operational efficiency and system performance.
Key Features
- Dual ARM Cortex-A15 processors running up to 1.5 GHz
- Dual C66x floating-point DSP cores for high-speed signal processing
- Dual ARM Cortex-M4 microcontrollers for real-time control
- Supports Linux and Real-Time Operating Systems (RTOS)
- PowerVR SGX graphics accelerator for advanced HMI applications
- High-speed DDR3/DDR3L memory support
- Dual Gigabit Ethernet interfaces
- Industrial communication support through CAN, UART, SPI, I²C, USB, PCIe, SATA, McASP, GPIO, PWM, ADC, and MMC/SD
- Integrated hardware cryptographic acceleration and Secure Boot
- Low-latency multicore architecture for deterministic processing
- Extended operating temperature support for industrial environments
- Low-power operation with advanced power management features
Why AM5718 is Suitable for Industrial Automation
Industrial automation and Industry 4.0 applications require processors capable of high-speed data acquisition, deterministic real-time control, intelligent analytics, and seamless connectivity across factory networks. The AM5718 combines dual ARM Cortex-A15 processors, dedicated DSP cores, and Cortex-M4 real-time processors to execute multiple tasks simultaneously, ensuring efficient machine control and rapid decision-making. Its multicore architecture enables continuous data collection from sensors, PLCs, and industrial equipment while supporting edge analytics, predictive maintenance, cloud connectivity, and Industrial IoT applications. Support for industrial communication interfaces such as Gigabit Ethernet, CAN, SPI, UART, and I²C allows easy integration with smart manufacturing systems, robotic controllers, HMIs, and SCADA platforms. With built-in hardware security, reliable real-time performance, and scalable processing capabilities, the AM5718 is an ideal platform for developing intelligent Industry 4.0 automation solutions.
Applications
The AM5718 is ideally suited for industrial automation systems requiring high-speed data reading, real-time monitoring, intelligent data processing, and precise equipment control. It enables embedded platforms to acquire data continuously from industrial sensors, PLCs, encoders, pressure sensors, temperature sensors, flow meters, machine vision systems, and other field devices while simultaneously processing and controlling industrial equipment.
Its multicore architecture allows one processing subsystem to handle real-time data acquisition while another manages control algorithms, communication protocols, operator interfaces, and cloud connectivity. This enables efficient monitoring of production lines, machine health, process parameters, motor control systems, conveyor automation, robotic equipment, and predictive maintenance applications. The processor also supports communication with SCADA systems, Manufacturing Execution Systems (MES), Industrial IoT platforms, and remote monitoring solutions for centralized process control and diagnostics.
At GVK POWER, we provide AM5718-based hardware design and embedded system development services, including processor board design, schematic capture, multilayer PCB layout, DDR routing, power supply design, high-speed interface implementation, industrial communication integration, embedded Linux and RTOS support, prototype development, hardware validation, testing, and production support. Our engineering solutions help customers develop reliable, scalable, and production-ready industrial automation systems for data acquisition, monitoring, and intelligent control.
Its multicore architecture allows one processing subsystem to handle real-time data acquisition while another manages control algorithms, communication protocols, operator interfaces, and cloud connectivity. This enables efficient monitoring of production lines, machine health, process parameters, motor control systems, conveyor automation, robotic equipment, and predictive maintenance applications. The processor also supports communication with SCADA systems, Manufacturing Execution Systems (MES), Industrial IoT platforms, and remote monitoring solutions for centralized process control and diagnostics.
At GVK POWER, we provide AM5718-based hardware design and embedded system development services, including processor board design, schematic capture, multilayer PCB layout, DDR routing, power supply design, high-speed interface implementation, industrial communication integration, embedded Linux and RTOS support, prototype development, hardware validation, testing, and production support. Our engineering solutions help customers develop reliable, scalable, and production-ready industrial automation systems for data acquisition, monitoring, and intelligent control.
Hardware Capabilities
The AM5718 integrates a powerful heterogeneous multicore architecture consisting of dual 1.5 GHz ARM Cortex-A15 processors, dual C66x floating-point DSP cores, and dual Cortex-M4 real-time processors, enabling simultaneous execution of high-level applications, signal processing, and deterministic control tasks. It supports high-speed DDR3/DDR3L memory along with NAND Flash, NOR Flash, QSPI Flash, eMMC, and SD card storage interfaces for flexible memory expansion. The processor offers a comprehensive range of communication interfaces, including Dual Gigabit Ethernet, CAN, USB, PCI Express (PCIe), SATA, UART, SPI, I²C, McASP, GPIO, PWM, ADC, and timers, allowing seamless integration with industrial sensors, PLCs, robotic systems, Human Machine Interfaces (HMIs), Industrial IoT gateways, and cloud platforms. It also incorporates a PowerVR SGX graphics accelerator for advanced visualization, Secure Boot with hardware cryptographic acceleration for enhanced system security, and robust networking capabilities that support SCADA systems, predictive maintenance, remote diagnostics, and smart factory connectivity, making it an excellent platform for Industry 4.0 and intelligent industrial automation applications
Benefits
- High multicore processing performance
- Real-time deterministic machine control
- Fast industrial data acquisition and processing
- Excellent support for industrial communication protocols
- High-speed DSP processing for signal analysis
- Supports advanced Human Machine Interface applications
- Scalable architecture for future system expansion
- Secure embedded platform with hardware encryption
- Low-latency control for industrial automation
- Reliable operation in demanding industrial environments
- Supports Linux and RTOS development
- Reduces overall system complexity through integrated processing resources
Design Considerations
Developing a reliable AM5718-based embedded system requires careful attention to hardware design practices.
- Design multilayer PCBs with optimized stack-up for high-speed signals.
- Implement controlled impedance routing for DDR, PCIe, Ethernet, SATA, and USB interfaces.
- Perform signal integrity analysis to minimize crosstalk, reflections, and timing issues.
- Ensure robust power integrity with low-noise power supplies and adequate decoupling.
- Apply EMI/EMC design techniques including proper grounding, shielding, filtering, and return-path optimization.
- Incorporate effective thermal management using thermal vias, copper planes, heat sinks, or forced-air cooling where required.
- Follow proper power sequencing and reset design recommendations.
- Select industrial-grade components suitable for long-term operation and extended temperature ranges.
- Protect external interfaces with ESD and surge protection devices.
- Design for manufacturability, testing, and long-term reliability using standard PCB design practices.
- Validate the hardware through functional, thermal, environmental, and compliance testing before production.
